So you have a PanelView Plus 7 and want to ?

Well in today's article I'll show you step-by-step how to use the PanelView Plus Configuration Menu to do just that.

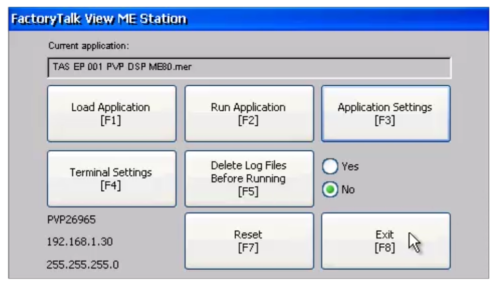

Step 1) Power on your PanelView Plus and return to the main configuration menu as shown below:

Note: If you don't know how to get back to the main configuration menu, check out my previous article on that topic:

Step 2) Select Exit from the main menu, and if prompted enter in the Desktop Access password, after which you should return to the Windows CE Desktop:

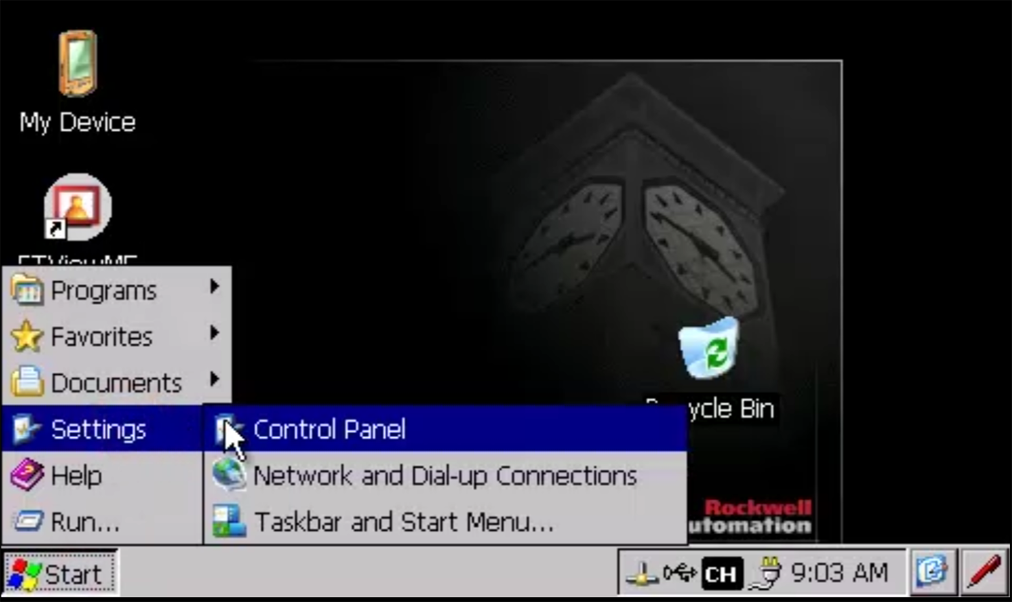

Step 3) Next select Start, Settings, and Control Panel:

Step 4) Now in the Control Panel select Services near the bottom left:

Step 5) Next, in the Services screen select FTP Server to turn it on and make it change from Red to Green. Then select Done to close the Services screen:

Step 6) Now select Server Config from the bottom left of the Control Panel:

Step 7) Here select the FTP Server Tab and make any changes you need to make to the configuration.

Step 8) When done, select the OK button on the top right of the Network Server Configuration window. Then select Yes if prompted to restart services:

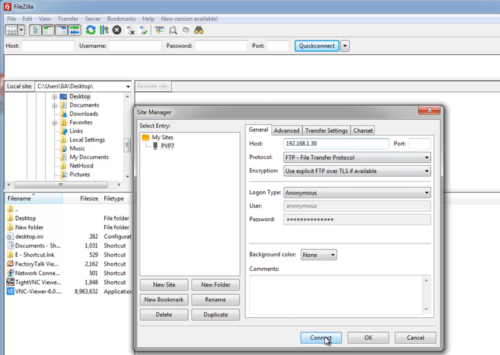

 Step 9) Now on your PC, in a FTP client application like Filezilla, add a new connection to your PVPlus using it's IP address and any required login information you added in step 7. Then select connect and you'll now have access to your PVPlus 7 via FTP:

 Question: Did you Find this article helpful? If so, please share it with co-workers and colleagues, and for more articles about the PanelView Plus click on the link below:


You can watch a video of the above procedure in the below video(s):



I hope you found this article helpful. If you have any questions please feel free to post them at Forums.TheAutomationBlog.com

Sincerely,

Shawn Tierney
Automation Instructor and Blogger (post views: 2,518 views)

Enjoy the benefits of membership! Patreon.com/automation
Check out my affordable courses: TheAutomationSchool.com
Ask me questions by clicking here to go to the comments link
Have an industrial automation news tip? Share it with us here

Avatar


Click HERE to scroll down to view or leave comments

Forum Comments:
  1. ive done this and rebooted ive even added a user ftp with the password ftp under control panel user accounts
    I still get this when using ftp and I can ping ok
    FTP looks like works only using Anonymous Authentication but not with Authentication. I have tried to enabled FTP authentication and ftp stop working.
    Good Morning Shawm,
    Is not fix yet. I believed you will be having this issue when you are using LDAP Authentication enabled.
    After enabling LDAP Authentication FTP works with Anonymous authentication not with user authentication.
    File Share stop working with or without authentication, when you access the Panel View IP address in windows machine it will asked for authentication even File Share is setup for not to authenticate and even you enable file share authentication and create and account in Panel View, account will not be accepted.
    I'm not sure if this is related to this article.
    https://rockwellautomation.custhelp.com/app/answers/answer_view/a_id/1092023/loc/en_US
    Thanks,
    Alex
