So you have a PanelView Plus and want to set or change its screen saver settings ?
Well in today's article I'll show you step-by-step how to use the PanelView Plus Configuration Menu to do just that.

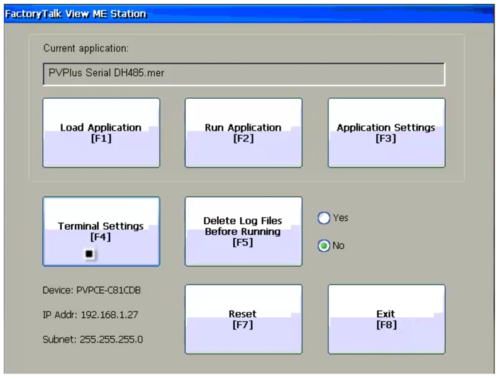

Step 1) Power on your PanelView Plus and return to the main configuration menu as shown below:
Note: If you don't know how to get back to the PanelView Plus's configuration menu, check out my previous article on that topic:
Step 2) Select Terminal Settings from the main menu, then select Display and then Enter:
Step 3) Now select Screen Saver and Enter:
Step 4) And now make any changes you wish to the Screen Saver's timing, intensity, and even advanced settings.
NOTE: For your changes to be saved you must exit this screen by clicking on the OK button.
Note: This is what the Advanced Settings screen looks like:
Question: Did you Find this article helpful? If so, please share it with co-workers and colleagues, and for more articles about the PanelView Plus click on the link below:
You can watch a video of the above procedure in the below video(s):
I hope you found this article helpful. If you have any questions please feel free to post them at automation.locals.com
Sincerely,
Shawn Tierney
Automation Instructor and Blogger
