In Today's article I'll walk you through how to change the Screen Saver Image used on the PanelView Plus 7, 6, and CE:

Part 1: Enable the Screen Saver Image on your PanelView Plus 7, 6, or CE

Step 1) From the PanelView Plus Configuration Menu, choose Terminal Settings:

Step 2) Next select Display, and then select Enter:

Step 3) Select Screen Saver, and then select Enter:

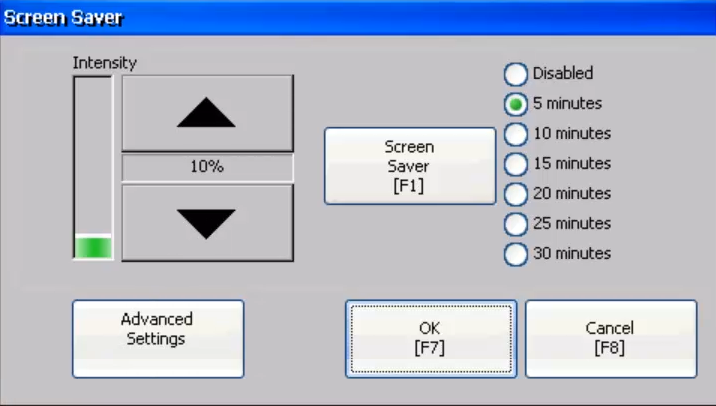

Step 4) Now select Advanced Settings:

Step 5) Here insure “Screen Saver Image” is set to Enabled. Then exit this screen and the previous one by clicking on “OK” to insure your settings are saved.

Part 2: Copying new Screen Saver Image to the PanelView Plus

Step 6) Copy your custom 80 pixel by 80 pixel .bmp (bitmap) screen saver image to the root directory of a compatible memory card or USB drive.

Step 7) Insert your memory card or USB drive into your PanelView Plus 7, 6, or CE HMI:

Step 8) Exit the Configuration Menu to access the Windows CE desktop:

Note: On some models you will need to know the Desktop Access password:

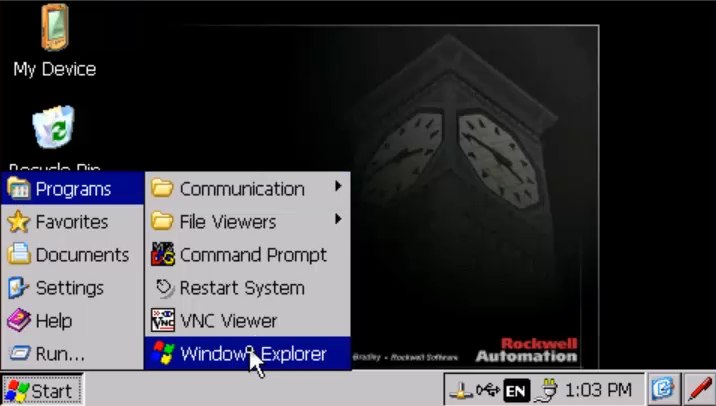

Step 9) Use Windows Explorer to copy your BMP image from your memory device to your PanelView Plus's \windows directory:

Step 10) Now launch Windows Control Panel:

Step 11) Open Display Settings, and then select the Screen Saver tab:

Step 12A) On the PanelView Plus 6 and 7, remove ssfloat and add you image:

Step 12B) On the PanelView Plus CE and VersaView CE, select your image from the \windows directory by using the Browse button:

Step 13) Click on OK to save your settings, and when the PanelView Plus next goes into screen saver mode you should see your custom image in place of the A-B logo:
