How to get Rockwell's MicroLogix to Micro800 conversion tool

Article Updated February 2018:

In today's article I'll walk you through how to get Rockwell's “MicroLogix Library Converter” MicroLogix 1000 to Micro800 conversion tool.

NOTE: For a step by step procedure on how to use this tool, see our article HERE.


Step 1) Navigate your web browser to www.ab.com:

PCDC-Step1-ab

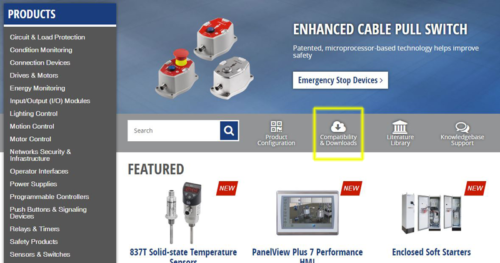

Step 2) Now select ” Compatibility and Downloads”:

Step 3) Now search on “Connected Components Workbench,” and then select it from the results:

Step 4) Now select “Downloads”:

Step 5) Next select the download icon:

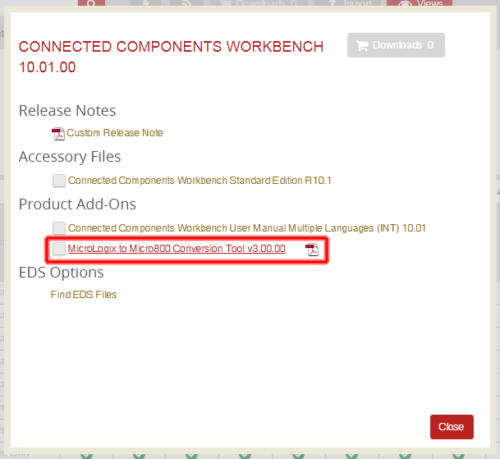

Step 6) In the popup window, select “MicroLogix to Micro800 Conversion Tool”

Step 7) If not already logged in with a free account, go ahead and do so:

Step 8) Now on the bottom right of the next page select “Accept”

MicroLogix to Micro800 Download 8

 Step 9) In this example we'll select “Direct Download”:

 Step 10) And click on the link to download the file:


Old Procedure showcasing Rockwell's old website (for posterity only)

Step 1) Navigate your web browser to www.ab.com:

PCDC-Step1-ab

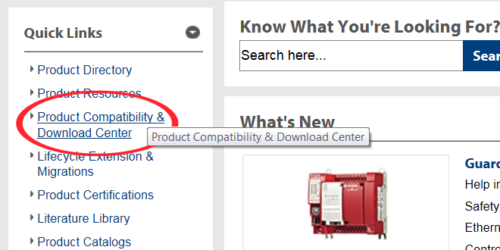

Step 2) On the left under quick links select “Product Compatibility and Download Center”

PCDC-Step2-PCDC

Step 3) Now select “Find Downloads”

How to Download PlantPAx Process Objects 2

Step 4) In the product search field type “CCW”

MicroLogix to Micro800 Download 3

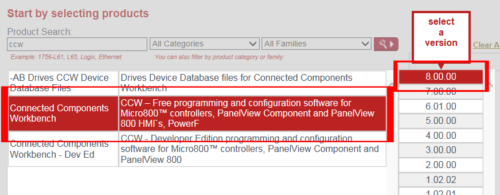

Step 5) Now select “Connected Components Workbench,” and then select version “8.00.00”

MicroLogix to Micro800 Download 4

Step 6) Then on the bottom right select “Downloads”

6-PCDC-DOWNLOADS-CCW-8

Step 7) Next, select the picture of a red arrow and gray box:

MicroLogix to Micro800 Download 5

Step 8) In the popup window, scroll down until you see, “MicroLogix to Micro800 Conversion Tool”

MicroLogix to Micro800 Download 7

Step 9) Now on the bottom left of the next page select “Accept”

MicroLogix to Micro800 Download 8

Step 10) Finally, select either “Managed Download,” or “Direct Download” to download the installation file:

MicroLogix to Micro800 Download 9


Step A) Once you've downloaded the file, “SetupCCWMicroLogixConversionV3.00.exe,” You'll need to run it to unzip the installation files:

Step B) Then double click on the setup file:

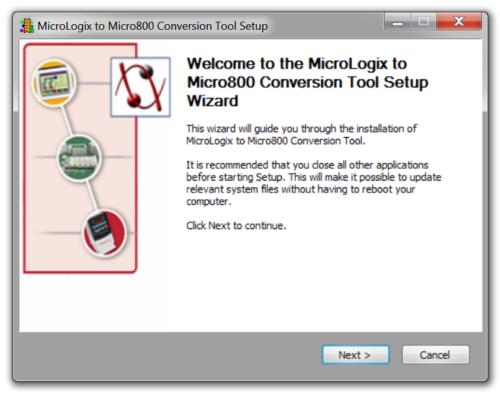

Step C) And walk through the installation wizard:

MicroLogix to Micro800 Install 2

MicroLogix to Micro800 Install 3

MicroLogix to Micro800 Install 4

 Step D) Now that the conversion tool is installed, you should find inside CCW under the “Tools” menu:

5-ML-M8-CONV-USE


I hope the above article detailing how to get the MicroLogix to Micro800 Conversion Tool was helpful.

For a step by step procedure on how to use this tool, see our article HERE.

Sincerely,

Shawn Tierney
Automation Instructor and Blogger
