So you have a PanelView Plus and want to copy an .MER runtime file from its memory to an external memory card or USB thumb drive?
Well in today's article I'll show you step-by-step how to use the PanelView Plus Configuration Menu to do just that.
Step 1) Power on your PanelView Plus and return to the main configuration menu as shown below:
Note: If you don't know how to get back to the PanelView Plus's configuration menu, check out my previous article on that topic:

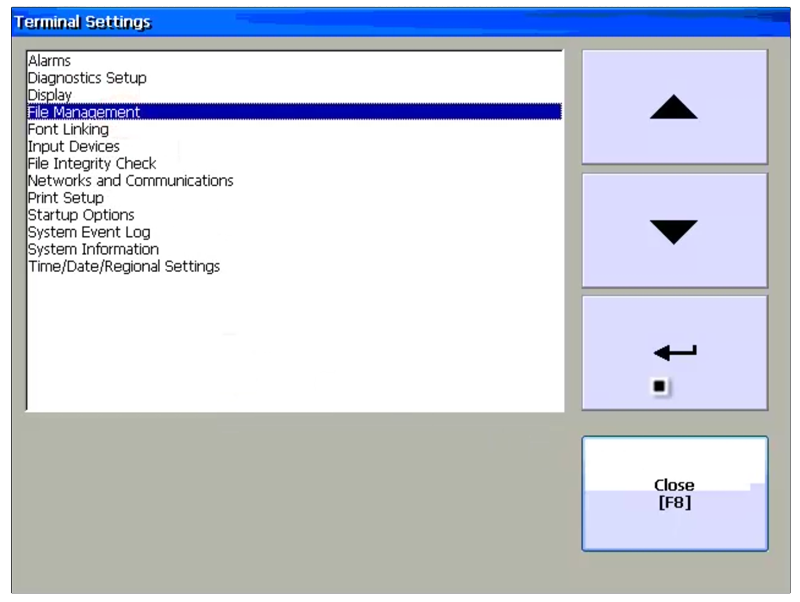

Step 2) Select Terminal Settings from the main menu, then select File Management and Enter:
Step 3) Now select Copy Files and Enter:
Step 4) Next select Copy Applications and Enter:
Step 5) Here select the .MER Runtime Application you would like to copy from the PanelView Plus's internal memory, and then select Destination:
Step 6A) If you're using a PanelView Plus 6 or 7 and want to copy your runtime to a compatible SD card, insert the card now. Then, once “External Storage 1” becomes available select it and then select Copy:
Step 6B) If you're using a PanelView Plus and want to copy your runtime to a compatible CompactFlash card, insert the card now. Then once “External Storage 1” becomes available select it and then select Copy:
Step 6C) If you'd like to copy the runtime file to a USB flash drive, first insert the USB drive into the PVPlus. If it is compatible, after a few moments “External Storage 2” will become available. Select it, and then select Copy:
NOTE: If you have a file on your memory device with the same name you're trying to copy you will be asked if you want to overwrite it.
Question: Did you Find this article helpful? If so, please share it with co-workers and colleagues, and for more articles about the PanelView Plus click on the link below:
You can watch a video of the above procedure in the below video(s):
I hope you found this article helpful. If you have any questions please feel free to post them at Forums.TheAutomationBlog.com
