How to download free Allen-Bradley Programs and AOIs

The Automation School – PAC Basics – Article Banner Top

One of the topics I like to cover in my training courses is how to get and use some of the hundreds of free programs and AOIs available free of change from Rockwell Automation.

That said, since Rockwell made major changes to their website recently I thought it made sense to update this article showing how you go about getting those free downloads:

1) To start, navigate your browser to http://www.ab.com:

theautomationblog-samplecode-01

2) Next, under “Downloads” select “Sample Code”:

theautomationblog-samplecode-02

3) Here you will see a search box where you can search for sample code:

theautomationblog-samplecode-03a

Now that we’re here, let me point out some of my favorite downloads.

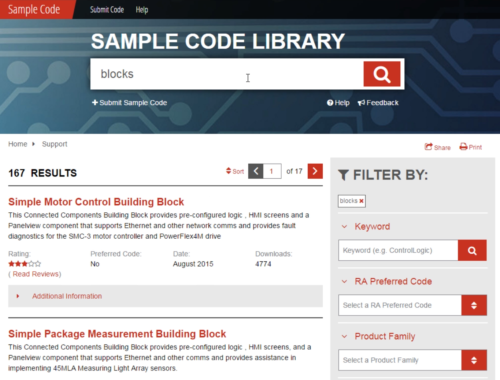

4) The first is actually a series of free programs for the MicroLogix which you can find by searching on “blocks”:

theautomationblog-samplecode-03b

In the results above, the first item listed is the “Simple Motor Control” building block which is well worth checking out.

5) Some other great downloads are free AOIs for RSLogix and Studio 5000. To find them search on “aoi”:

theautomationblog-samplecode-04a

6) Towards the bottom of these results you’ll find the “SCP” AOI, a great little piece of code for those who only have access to the Ladder Diagram language and need to scale raw values to engineering units without a lot of fuss:

theautomationblog-samplecode-04b

If you’ve found this article helpful and would like to watch the video version, check out the below episode of The Automation Minute:

Sincerely,

Shawn Tierney
Automation Consultant
Insights In Automation

Did you find my article helpful? Why not become a Premium Member with a small donation, and in return I'll give you a coupon for $10 of automation downloads! Find out more here
